T3528 Series

High Luminous Efficacy cost-effective

永乐高ylg888888(中国)有限公司

FEATURES:

• Thin encapsulation with heat sink， efficient heat dissipation.
• Applicable to fluorescent lamp etc. cost-effective
• Rated power：0.2W

ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 35mA
Pulse Forwards Current*²
 IFP 100mA
Reverse Voltage
 VR
 5V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color temp(K) CRI Ra Min IF( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.

IR(µA)

Max*1

Natural white FM-T3528WNS-460R 5600-6500 70 20 7.0 3.2 10
Neutral white
 FM-T3528WDS-460R-R70 3700-4200 70 20 6.5 3.2 10
Warm white
 FM-T3528WLS-460R-R70
 2800-3200
 70
 20 6.0 3.2 10

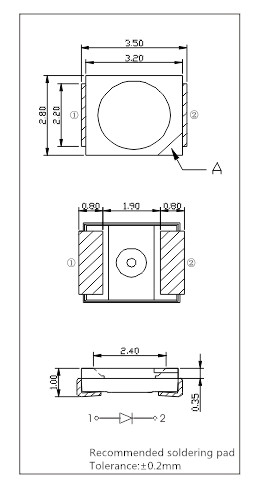

DIMENSIONS/UNIT(mm):
