T5050 Series

Cost-effective TOP white LED

永乐高ylg888888(中国)有限公司

FEATURES:


• Widely used in various products with general dimension
• High brightness，reliable performance and cost-effective.

• Excellent light uniformity，widely used in flexible strip，light source module etc.
• Rated power：0.2W


ABSOLUTE MAXIMUM RATINGS:

Parameter Symbol Rating
Forward Current IF 3*25mA
Pulse Forwards Current*²
 IFP 3*100mA
Reverse Voltage
 VR
 5V
Working Temperature
 TOPR
 -30~+85℃
Storage Temperature
 TSTG
 -40~+100℃


PRODUCT PARAMETERS/TA=25℃:

Color Part number Color temp（K） CRI Ra Min I F( mA)
TEST
 Φv（l m）
Typ.
 VF( V)
Typ.
 IR( µA)Max*1
Natural white FM-T5050WNS-460R 5600-6500 70 60 21 3.2
 10
Neutral white
 FM-T5050WDS-460R-R70 3700-4200 70 60 21 3.2
 10
Warm white
 FM-T5050WLS-460R-R70
 2800-3200
 70
 60 20 3.2
 10

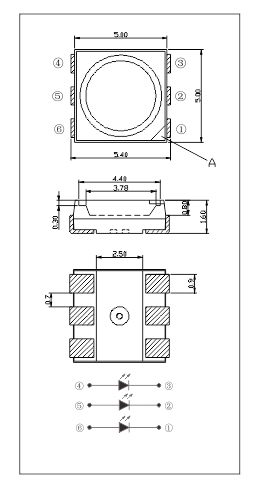

DIMENSIONS/UNIT(mm):
